Marine Straight Boom Crane
Information
Summary
Marine straight Boom Crane consists of pedestal, boom, hoisting winch, hydraulic cylinder, slewing gear, hook, operation platform etc.
All motions are operated on the platform or operator cabin by the multi-way valve.
The combined activities are exercisable and the rated speed is reduced too.
Design condition heel 5 degree and trim 2 degree.
Slewing range 360 degree.
Crane equips with manual emergency release device and emergency stop device.

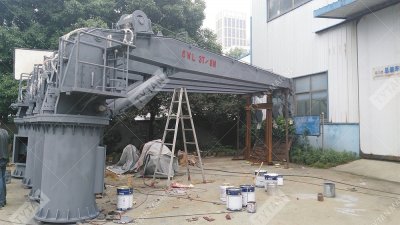

Attached model is an 30kN x 8M straight boom crane and details in below:Safety working load 30kN at 8M.
Working radius from 2 to 8M.
Slewing angle 360 degree.
Hoisting speed 15m/min.
Luffing time 60s.
Hydraulic driven hoisting, hydraulic driven slewing, hydraulic luffing, self-equipped hydraulic station, fully slewing and the load can safely be lowered by manual emergent device.
Features
- Design standard be based on CCS, BV, ABS, NK, GL, DNV, RINA, RS, IRS
- Simultaneous operation of two or more functions
- Various control options
- 360ºcontinuous rotation with limits available
- Heat Treated stainless steel
- Continuous welding throughout
- Pedestal interface to suit client requirements
- Epoxy zinc rich primer marine coating
- All kinematic pair with good lubrication
- Factory assembled and factory acceptance tested
More Info
Tytan Marine is a custom manufacturer of Marine Straight Boom Crane. For more product details and price of Marine Straight Boom Crane for sale (and any others), please contact us at any time. No matter what do you need from Tytan Marine, we prefer to offer it in China.
