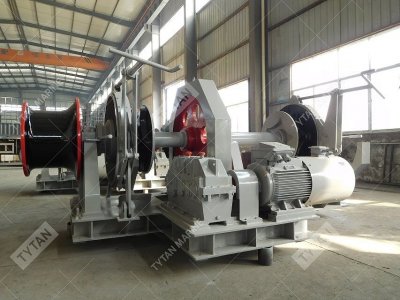

Electric Windlass

Electric Windlass

1. Project background:

Tytan Marine be required to supply all the electric windlasses for the total five new building barges. And one barge will be installed four sets of 44 mm Electric Windlass to make sure the safety of the barge.

2. Design Standard:

As the new barges will be under the rule and regulation of CCS class, so our windlasses be designed and manufactured follow the newest requirements of CCS Classification Society.

3. Configuration:

The windlass be designed with two gypsy / chain wheels for anchor handling and with one warping head for mooring purpose.

4. Main Components:

This windlass include one electric motor, one reduction gear box, two gypsy / chain wheels, one warping head, one major control box and a local control stand, etc.

5. Main Specification:

Chain dia. : 44 mm with grade 3

Centre distance between two gypsy / chain wheels: 2000 mm

Working load: 92 kN

Over load pull: 138 kN

Brake holding load: 691 Kn

Anchor lifting speed:≥9 m/min

The maxdepth of anchoring: ≤ 82.5 m

Motor power: 30 Kw / 980 r / min

Warping load for mooring: 70 KN

Constant torque: from 5 to 50 Hz

Constant power: from 50 to 100 Hz

Power duty: 380 V / 50 Hz / 3 P, S 1

6. Owner of the windlass:

All these windlasses will be sent to Thailand.

7. GA plan of this kind of windlass:
